Specifications:

• Operating Temperature: 0 - 50 ℃
• Operating Mode: double-integral style A/D transform
• Model Number: AN8004/zt102/rm101/rm101
• Measuring Voltage Range: 200mV/2V/20V (+ 0.8%+5), 200V/800V (+ 1.0%+8)
• Measuring Resistance Range: 200 (+ 2.5%+5), 2K/20K/200K/2M (+ 1.0%+5), 20M
• Measuring Inductance Range: -
• Measuring Current Range: 20mA (+ 2.0%+5), 200mA (+ 1.5%+5)
• Measuring Capacitance Range: No

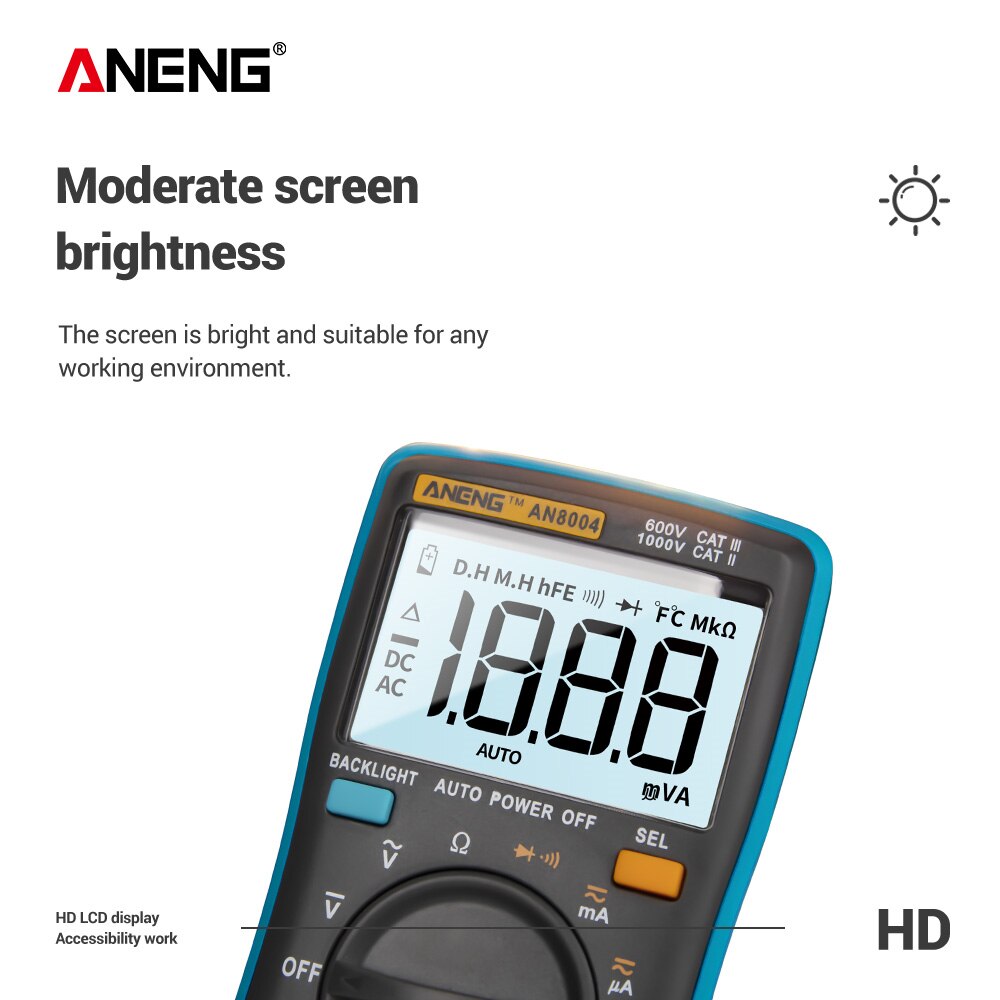

• Large LCD display: 1999 counts
• Is Smart Device: YES
• Frequency: 1Hz to 10MHz
• Duty cycle: 1% to 99%
• DIY Supplies: Electrical
• Display Type: Digital Display

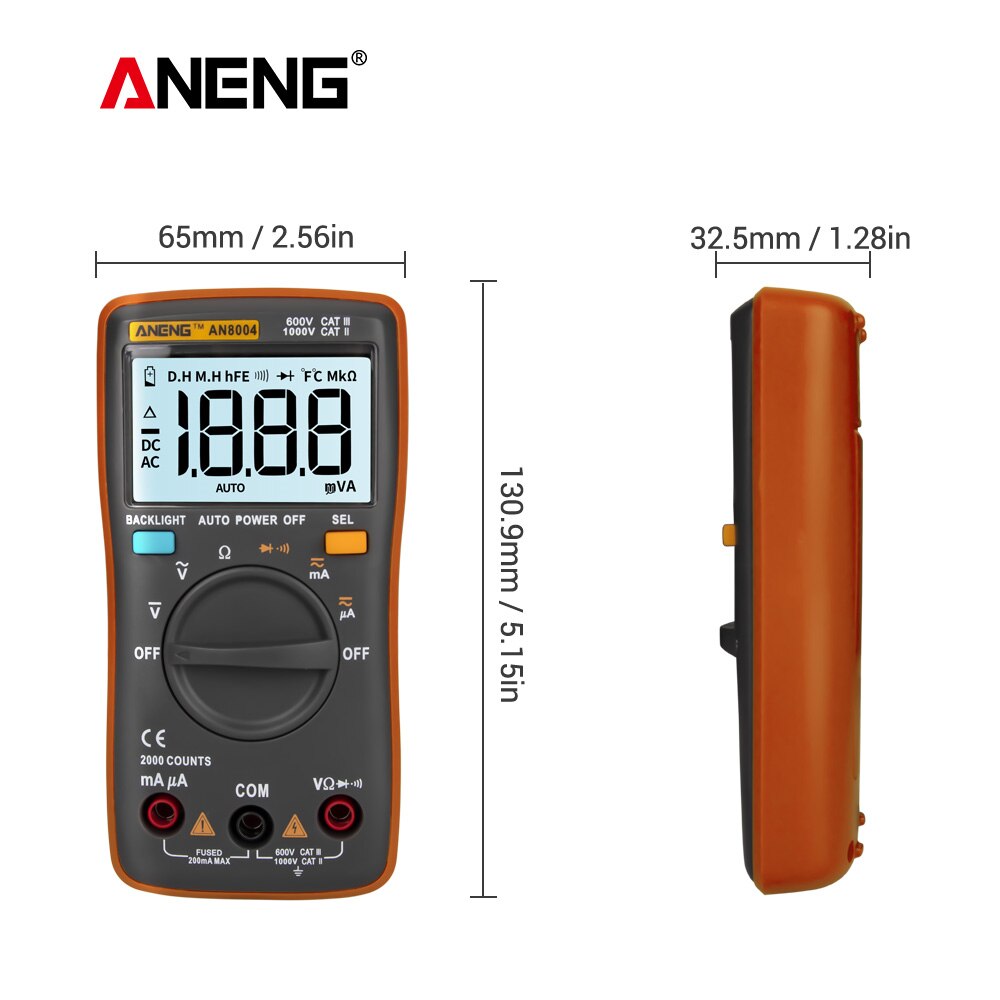

• Dimensions: 65x130x32 mm
• DC Voltage: 400mV/4V/40V(+-0.5%+4),400V/600V(+-0.8%+4)
• DC Current: 40mA/400mA
• DC current: 0.1uA to 10A
• Data hold: yes
• Brand Name: ANENG
• Battery type: AAA x2 Pcs 1.5V
• Alligator clip jumper length: 90cm

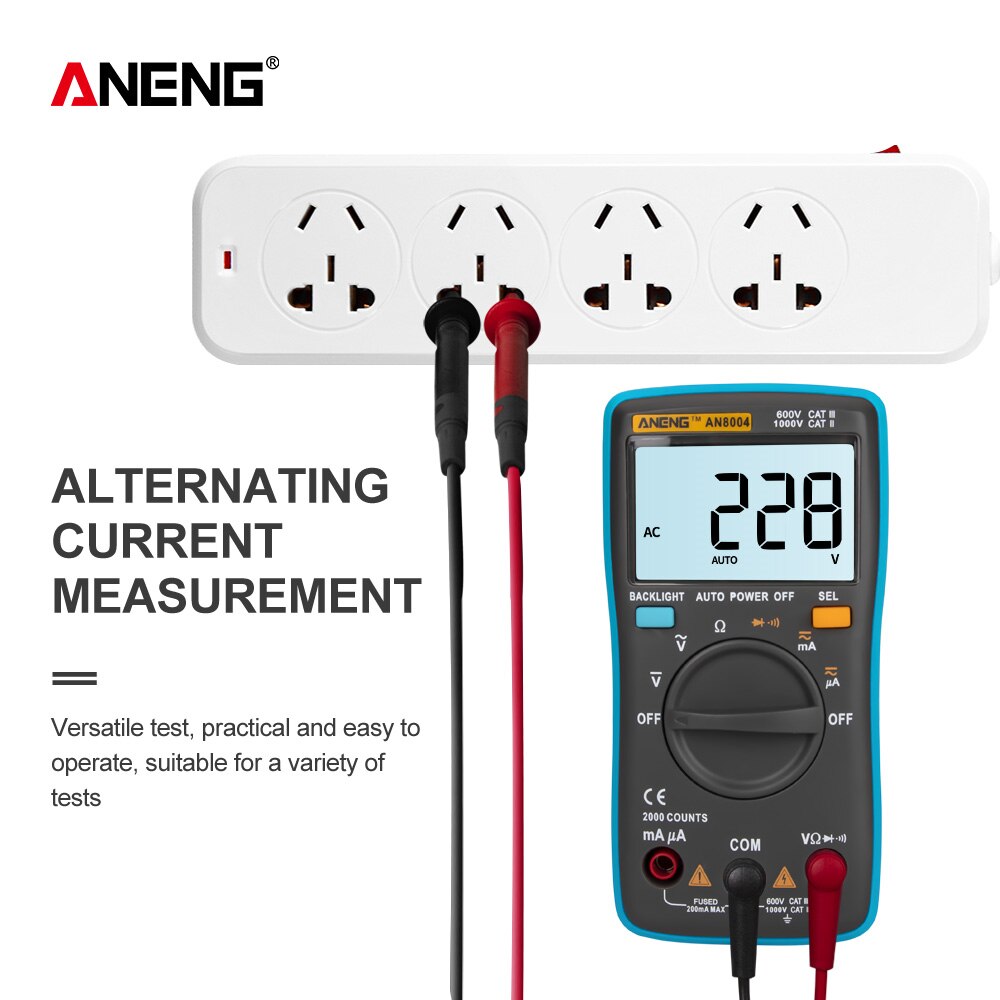

• AC Voltage: 400mV(+-1.5%+4), 4V/40V/400V(+-1.2%+4),600V(+-1.5%+4)
• AC Current: 40mA/400mA/10A(+-2.0%+4 ,50-200Hz)
• Main measurements: AC/DC Voltage AC/DC Current Resistance Capacitance
