Specifications:

• Material: plastic + alloy + aluminum
• kwh Meter RS485: Energy Meter Modbus
• Wattmeter Power Meter: Energy Saving Wattmeter
• Phase: Three Phase
• Frequency: 50 Hz

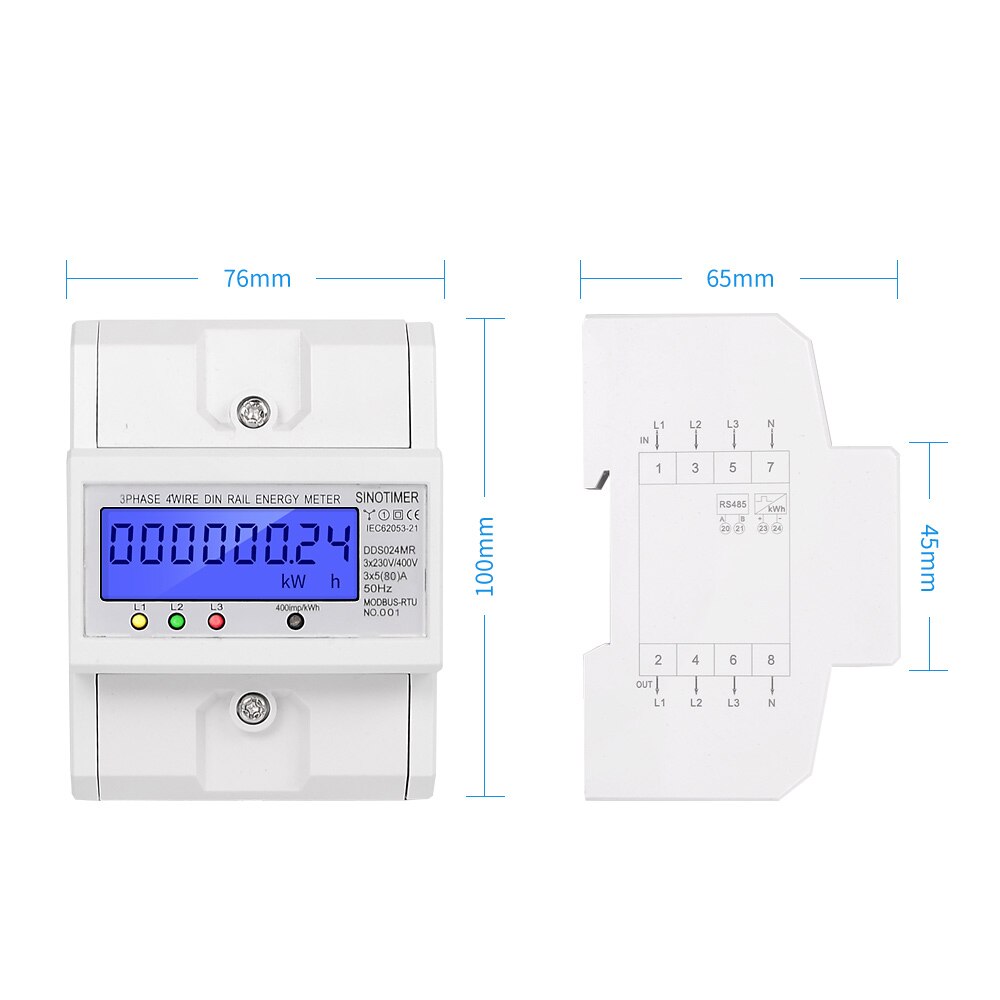

• Dimensions: 100*76*65mm
• Installation: 35mm DIN Rail
• Operating Temperature: -10~50 C
• Rated Voltage: 380V
• Power Meter 3 Phase: 3 Phase Energy Meter
• Reference voltage: 380V
• Output Voltage: 380V AC
• Backlight: Blue
• Display method: LCD digital
• Rated current: 80 A
• Volt Amp Watt Meter DIN: Energy Meter with Backlight

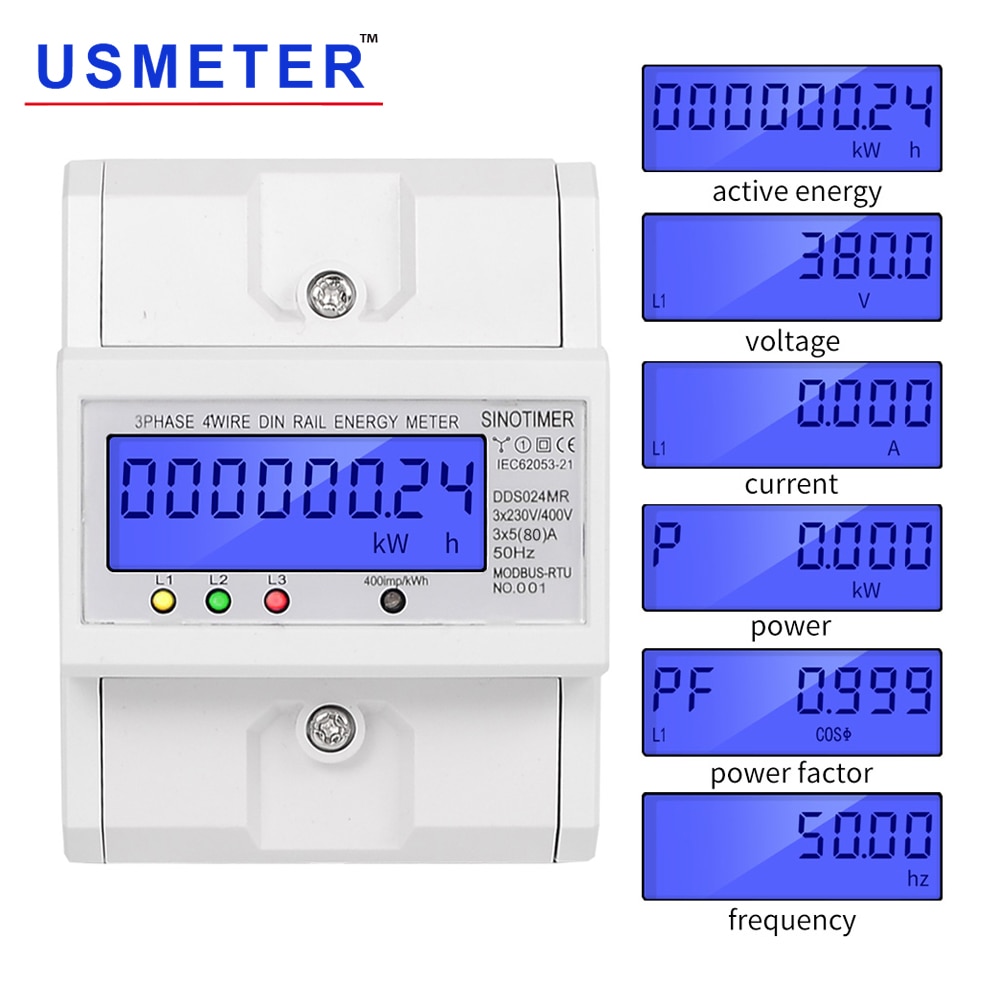

• Display Content: KWH,voltage,current,power,power factor,frequency
• Power Supply: AC
• Display Type: LCD
• Certificates: IEC62053-21,CE RoHS
• Speed (pulse) constant value: 400imp/kwh

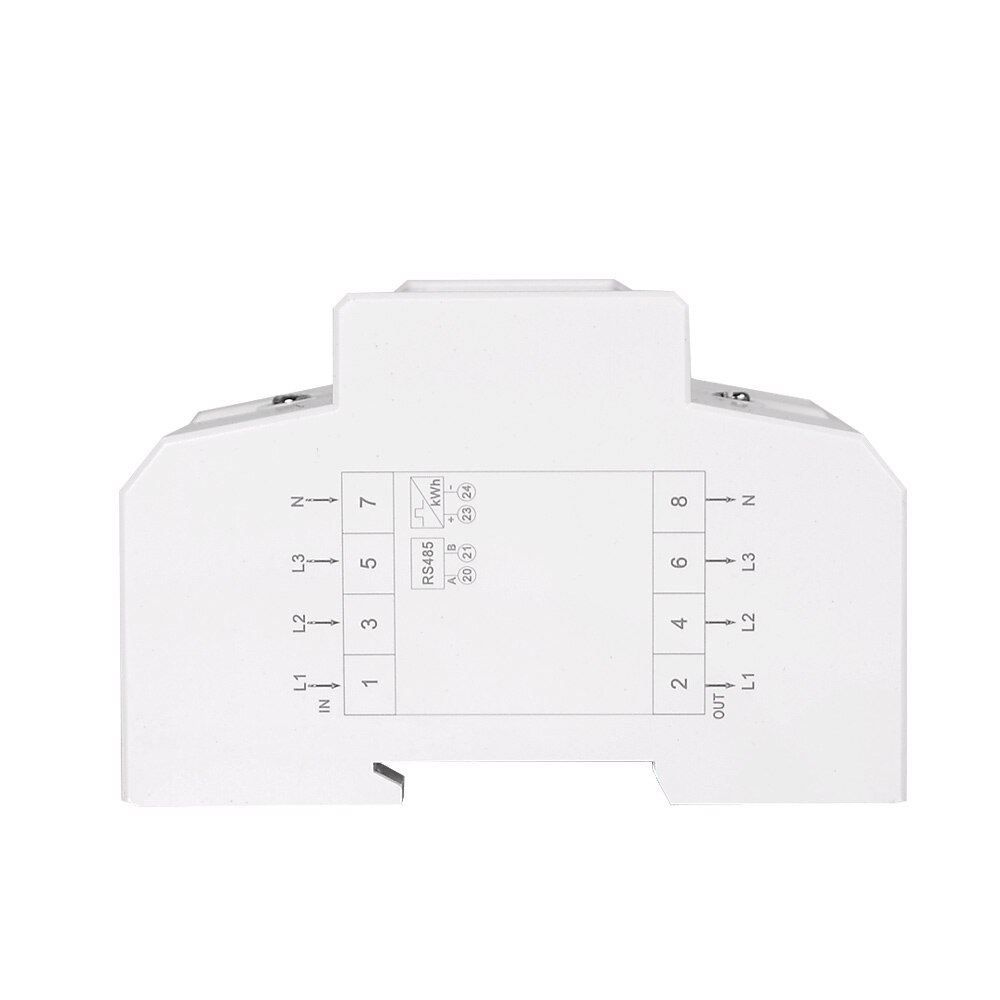

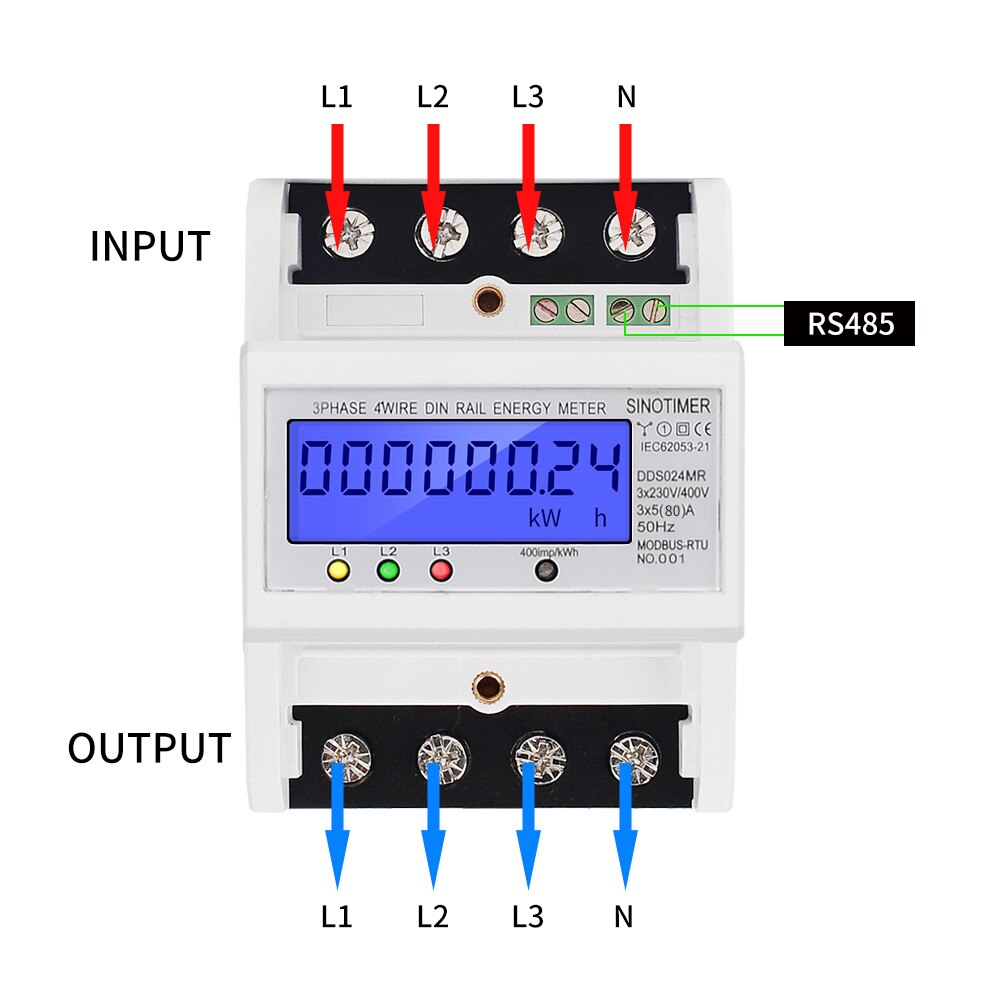

• Wiring Method: Up to Down
• Max Operating Current: 50A - 79A
• Model Number: DDS024MR
• Brand Name: SINOTIMER
• Accuracy Class: 1
• Measuring Energy Range: 999999.99
• Starting Current: 0.04%
• DIY Supplies: Electrical
• Energy Meter Module: Smart Energy Meter 3 Phase
• kwh Meter Digital: Watt Meter and Power Analyzer
• Weight: 0.43kg
• 3 Phase Wattmeter: Digital Wattmeter
