Specifications:

• Base plate material: Aluminum profile
• Certification: CE
• Current: 0.6A

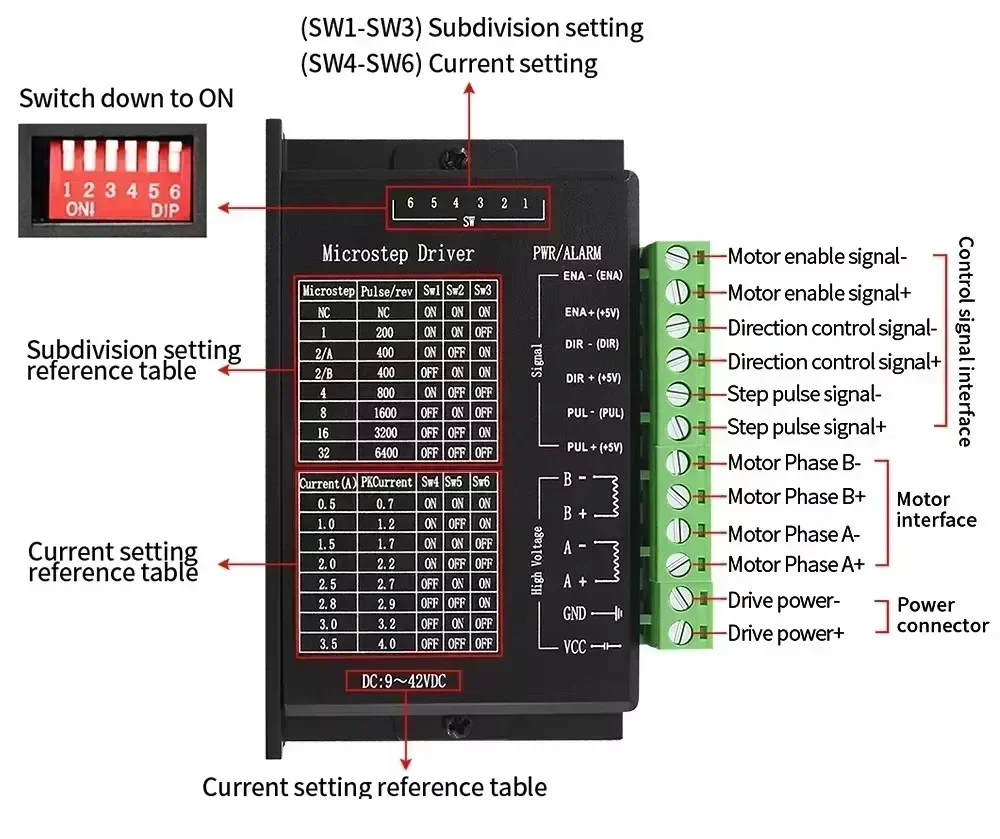

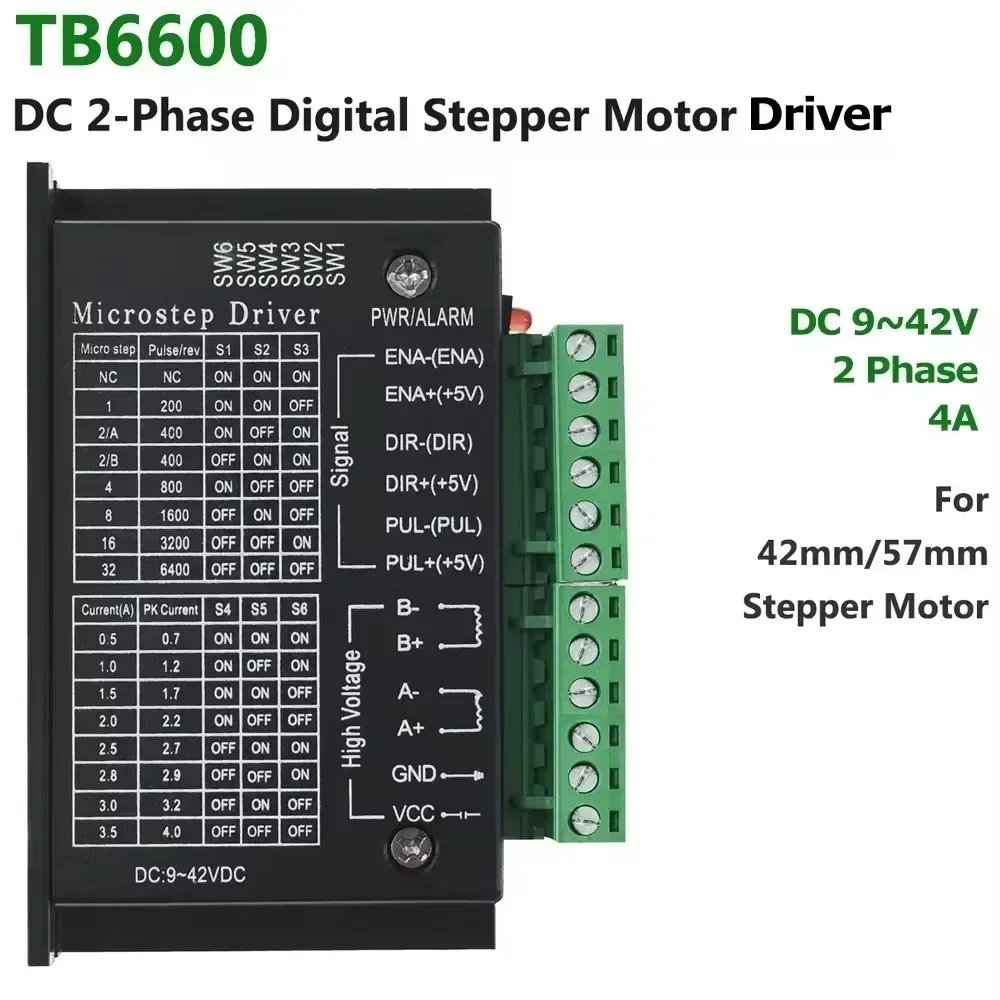

• Drive Input voltage: DC 9-42V

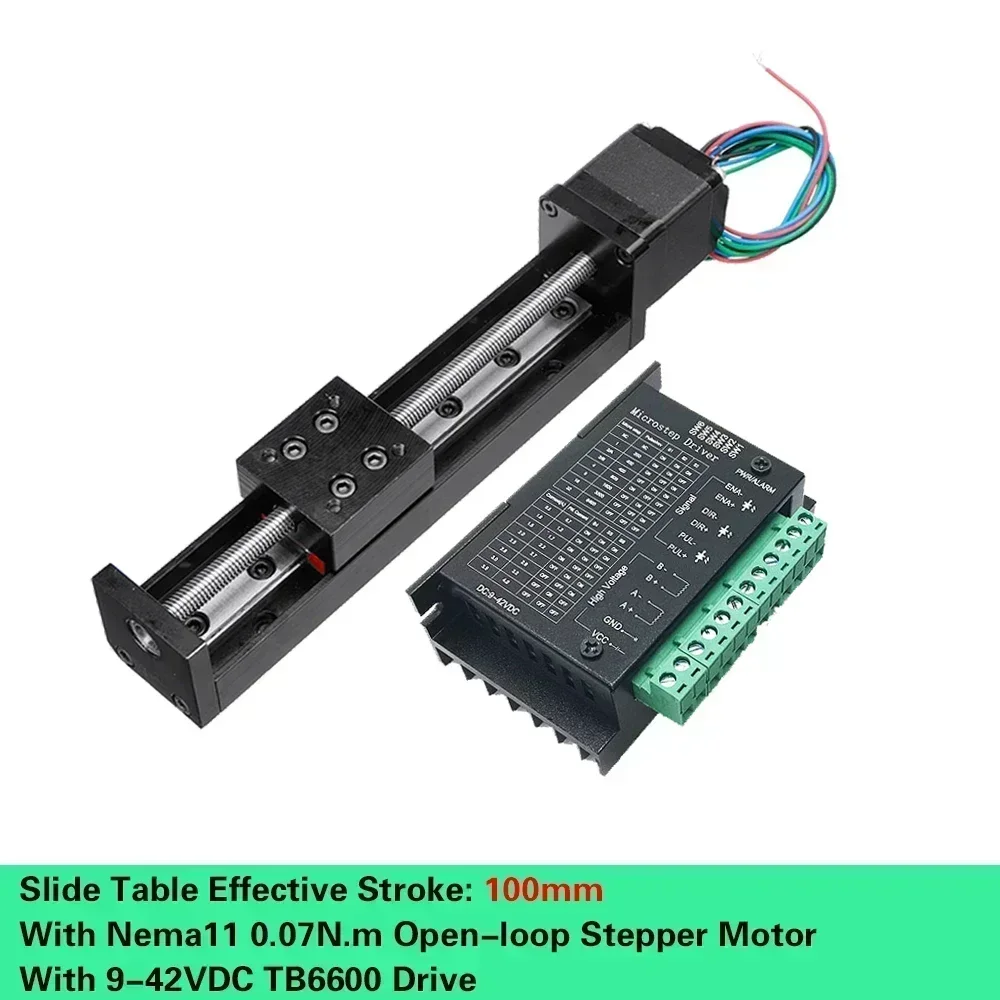

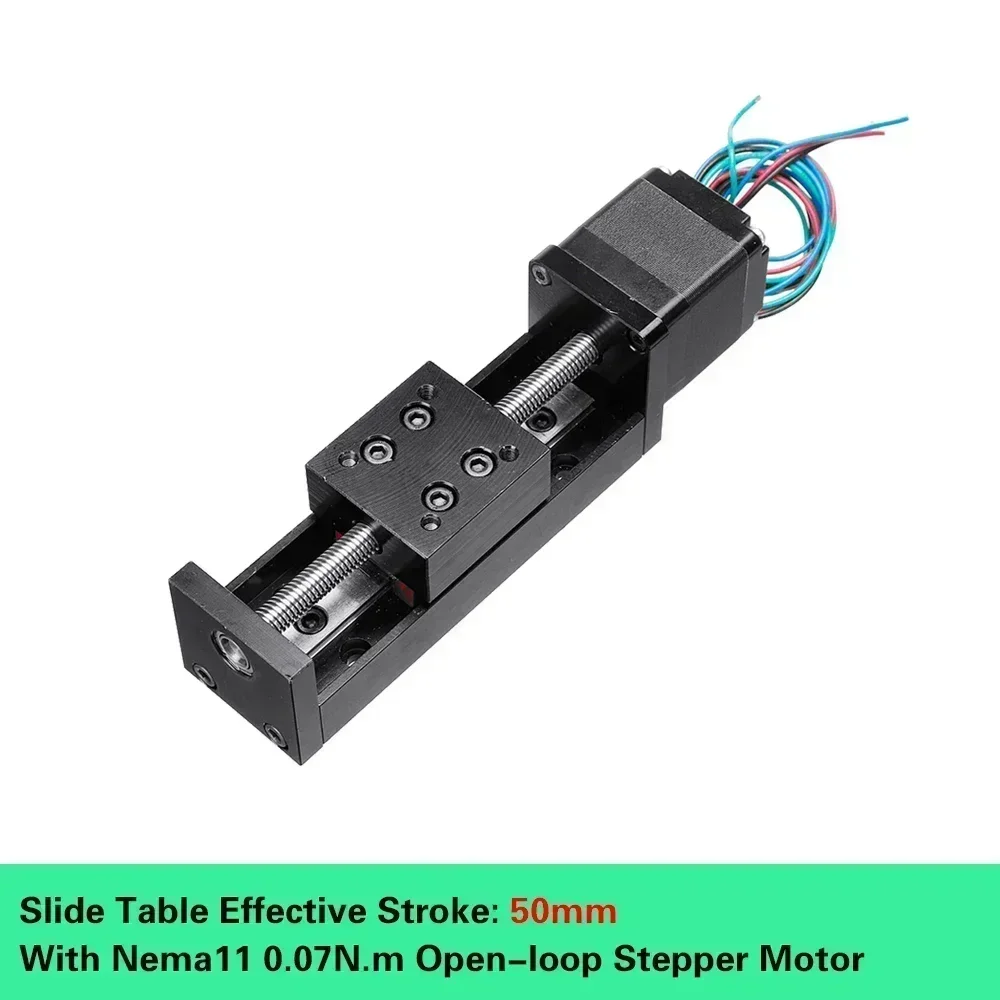

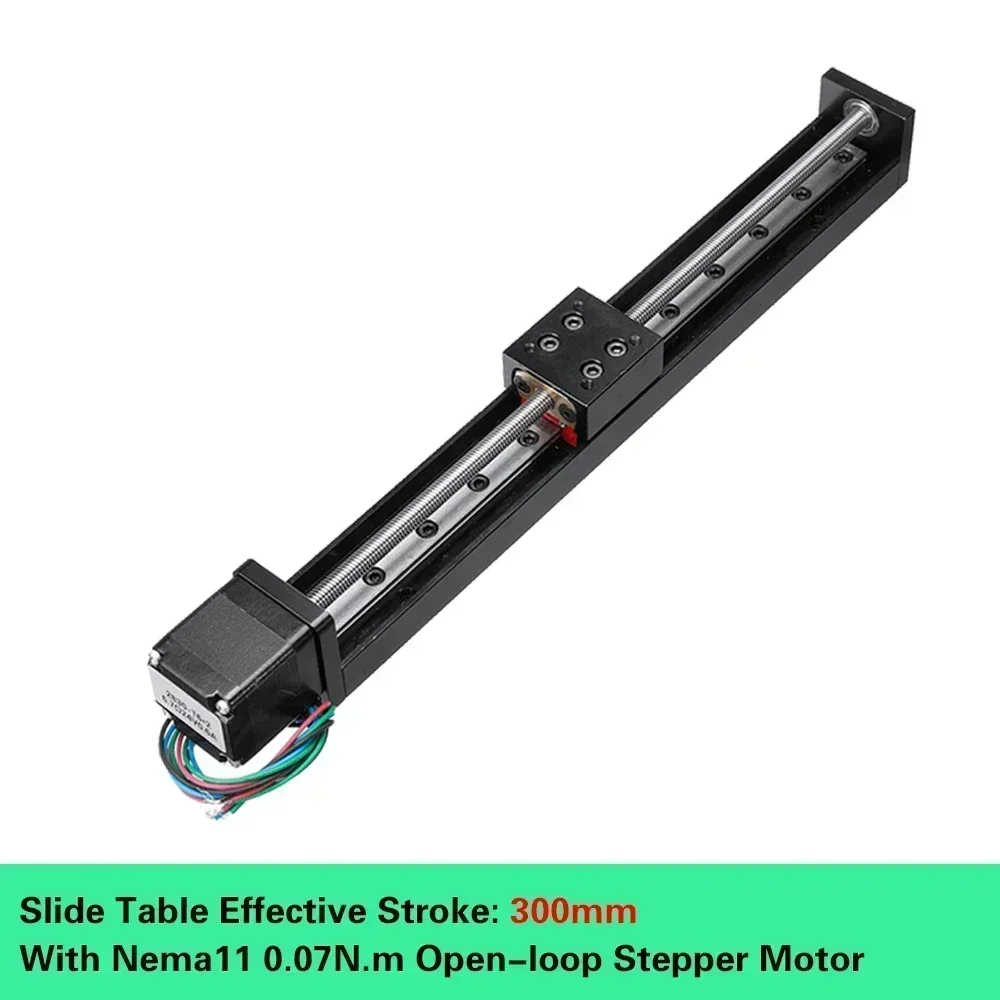

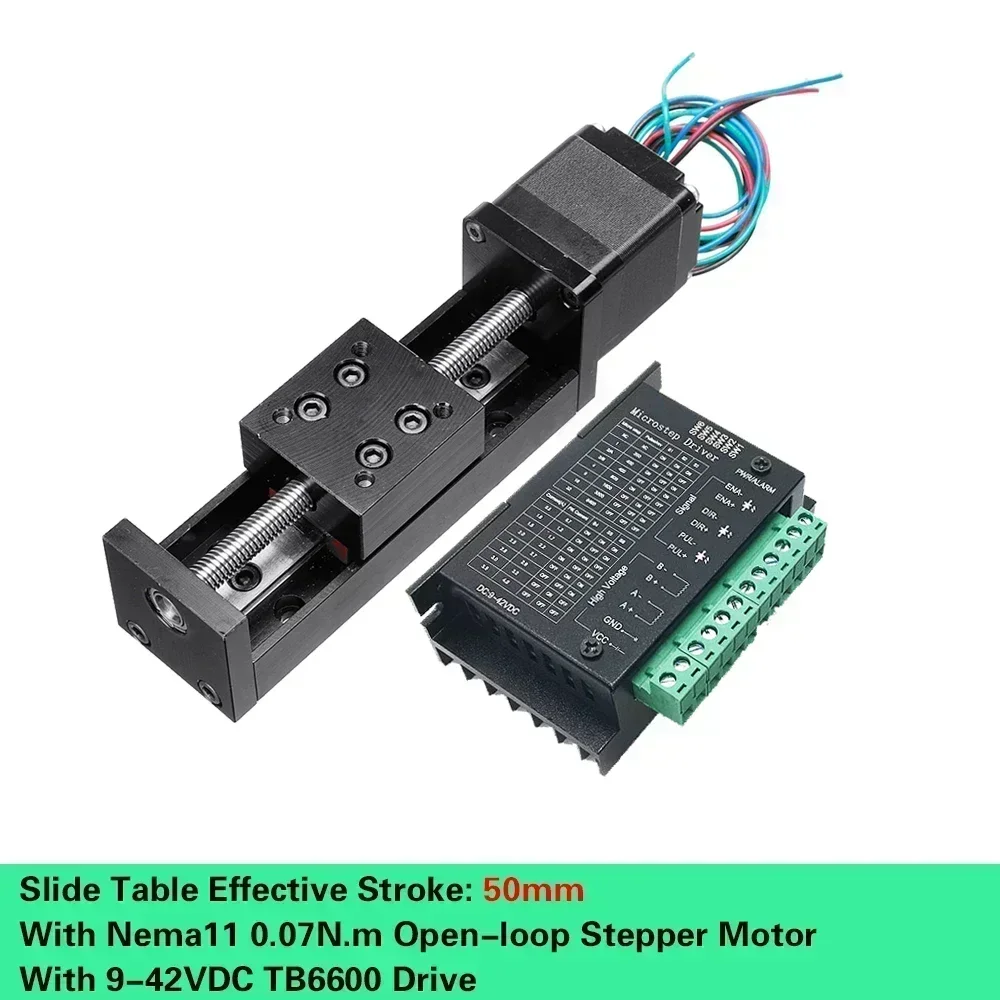

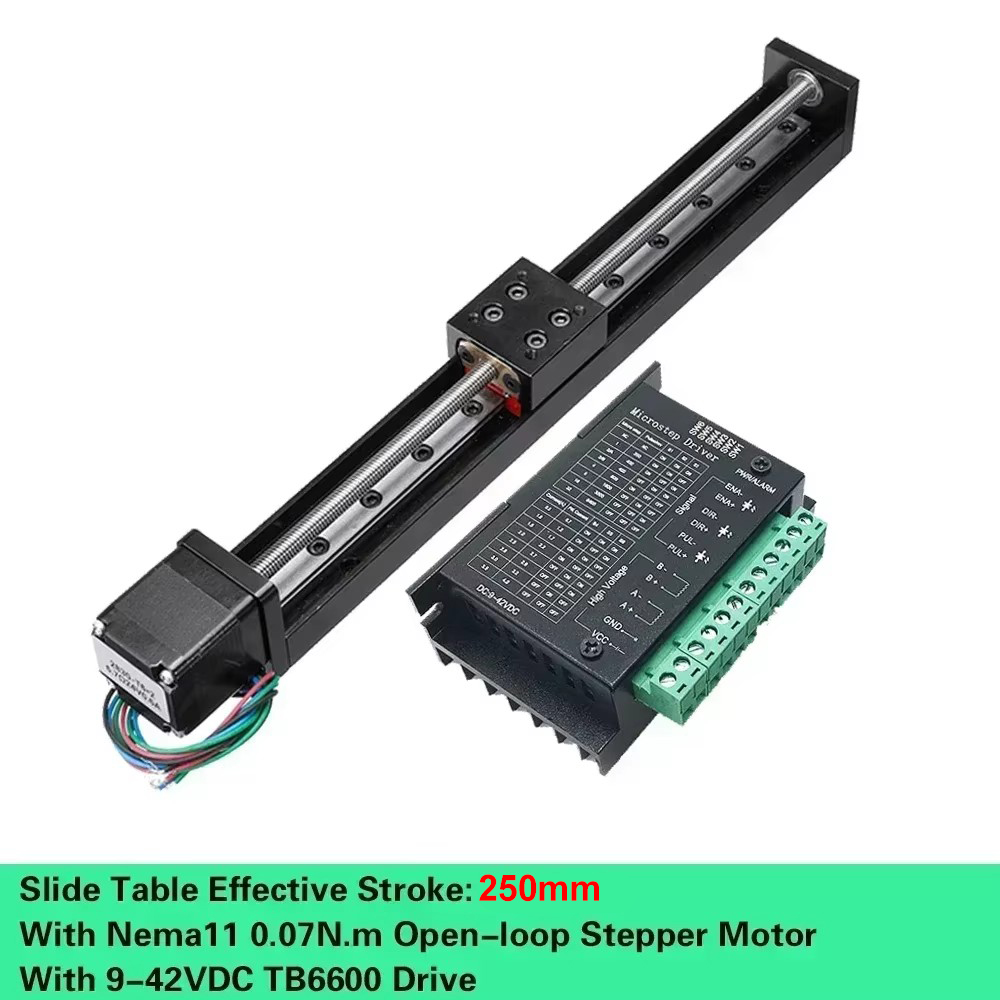

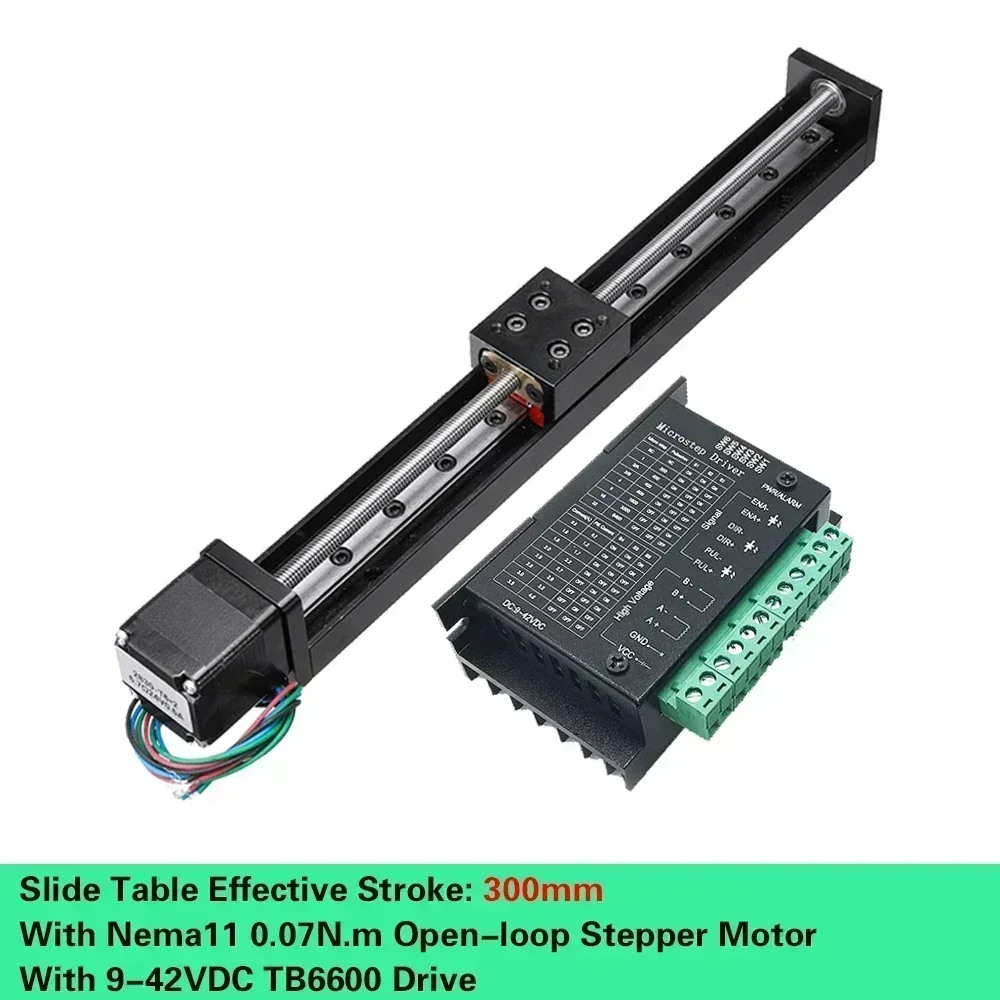

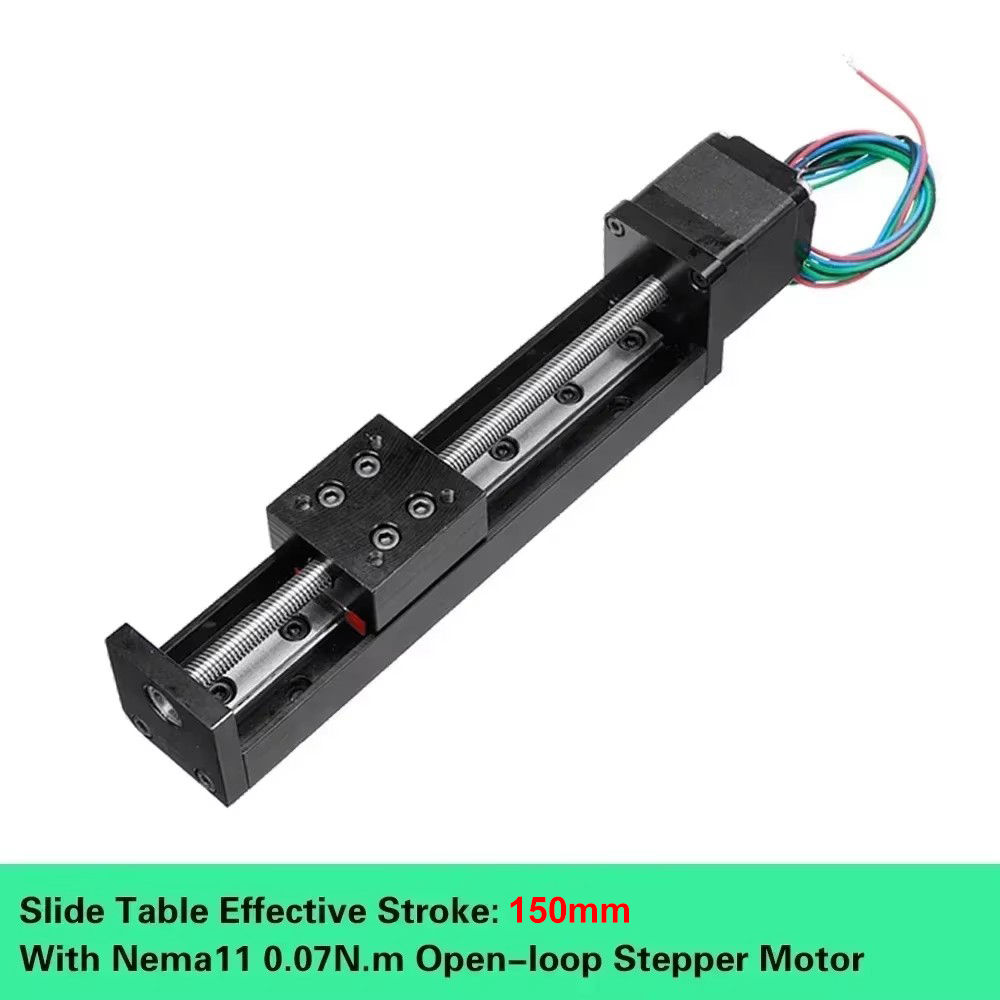

• Effective stroke: 50mm-300mm
• Guide Width or Diameter: 6mm
• Hign-concerned Chemical: None
• Horizontal load: 5KG (Max)
• Maximum speed: 80mm/s

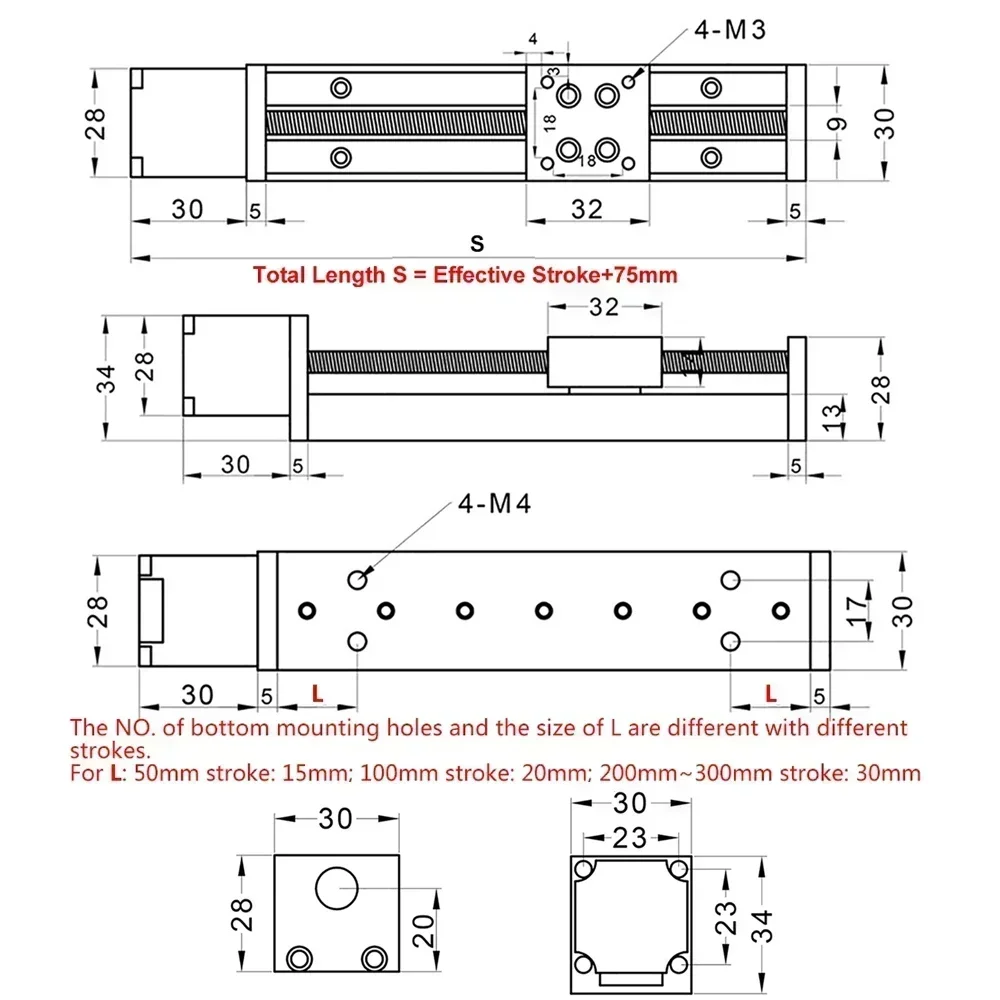

• Mobile panel size: 30mm*32mm
• Model Number: T0601
• Motor Holding torque: 0.07N.m

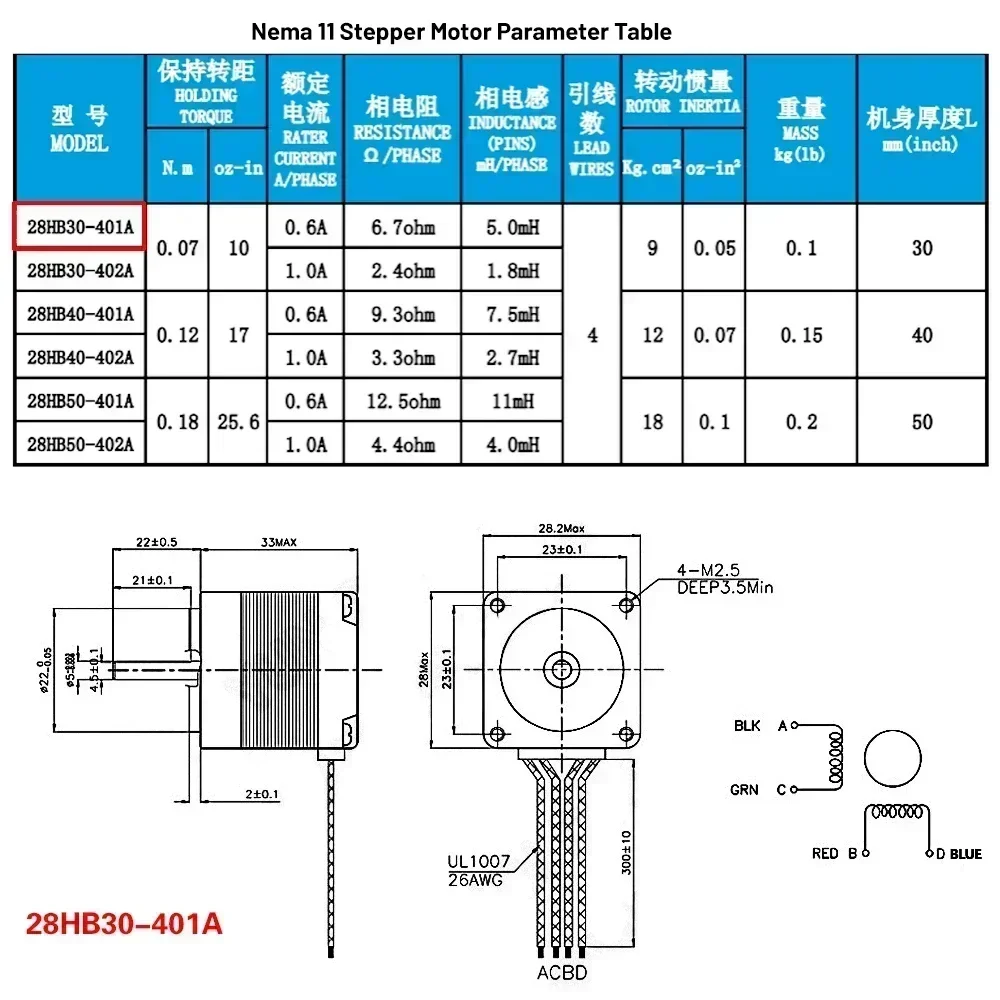

• Motor type: Nema11 2PH Open-loop Stepper Motor
• Origin: Mainland China

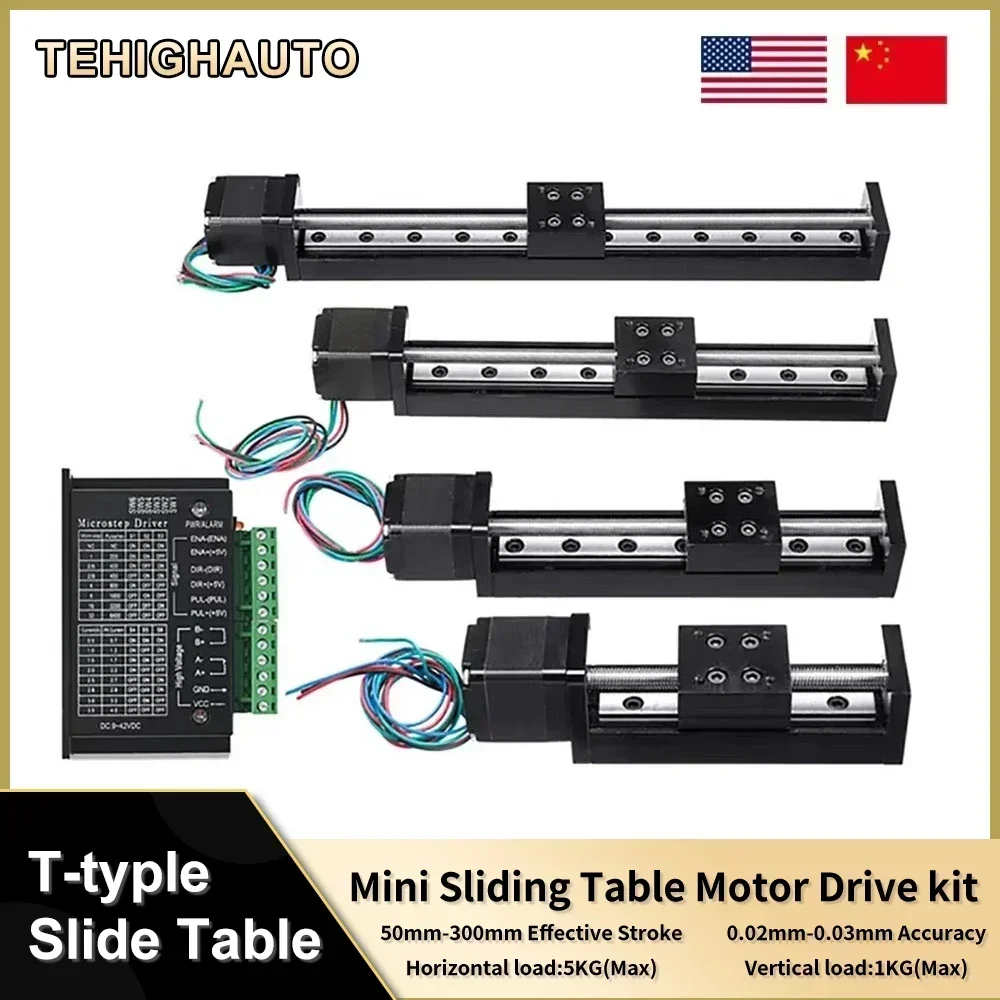

• Product keyword: Electric Sliding Table
• Rail material: Bearing steel
• Repeat positioning accuracy: 0.02mm-0.03mm
• Screw Precision: C7
• Slide type: Trapezoidal lead screw sliding table
• Step angle: 1.8degree
• Vertical load: 2.5KG (Max)
